TITLE : IMPINGEMENT JET OF STEAM

BY : CRC Research Institue Inc. Japan
FOR : Demonstration Case
DATE : 1990
PHOENICS Version : 1.5

DETAILS :

• Two-Dimensional Steady flow
• Cylindrical computational grid

NOTES :

• Describes the super-sonic flow of a jet of steam as it exits an nozzle and impacts against a flat plate
• The velocity of the jet of steam is about Mach 1
• The velocity vectors describe a re-attached impingement wave as it strikes the plate

  Pictures are as follows :

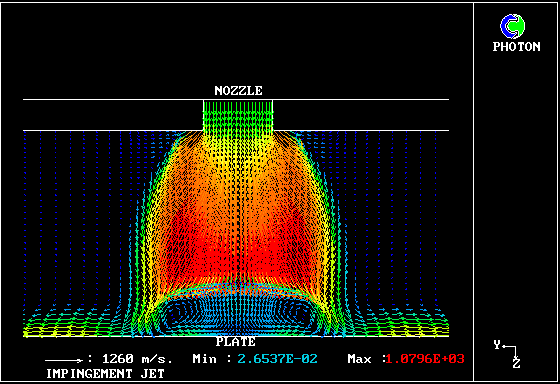

  Velocity Vectors (Re-attached impingement wave in blue)

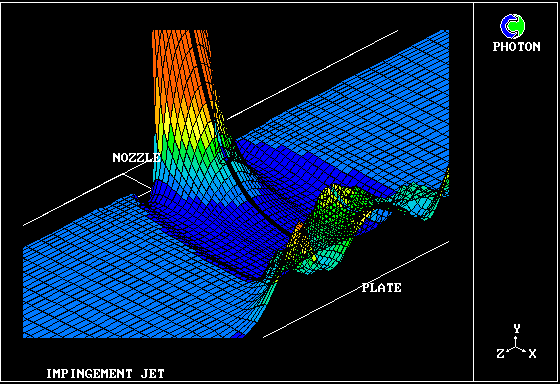

  Pressure Profile
