TITLE : PHOENICS IN THE AUTOMOTIVE INDUSTRY : CATALYTIC CONVERTER MODEL

BY : CHAM Consultancy Team
DATE : 1992
PHOENICS Version : 1.6

DETAILS :

• Two-Dimensional Steady flow
• Curvilinear(BFC) Computational grid

NOTES :

• Isothermal, "cold flow" prediction of the air movement in a catalytic converter model

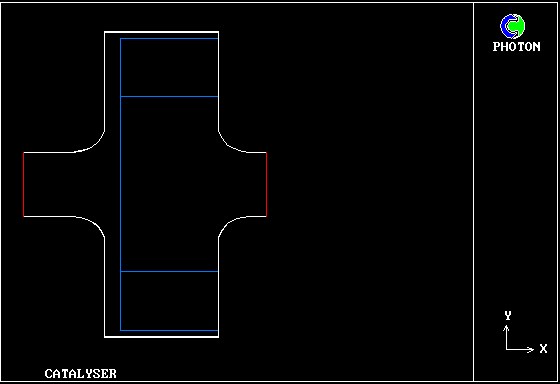

Geometrical Configuration

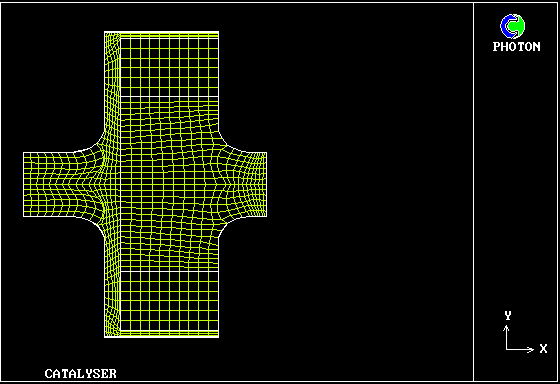

Computational Grid

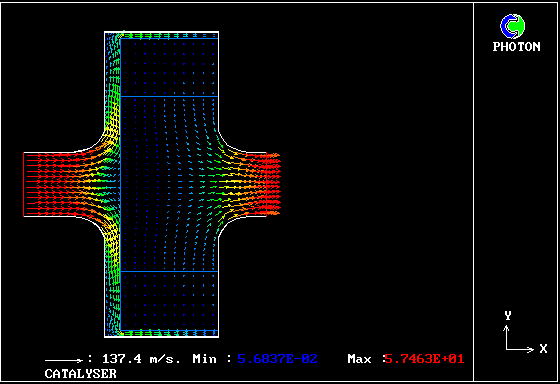

Velocity Vectors

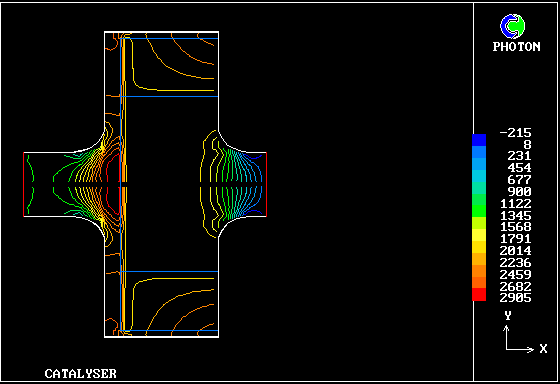

Pressure Contours
