TITLE : CENTRIFUGAL PARTICLE SEPARATION - Scalar Equation Model

BY : CHAM Development Team - J Heritage
DATE : 1993
PHOENICS Version : 2.0

DETAILS :

Three-Dimensional steady Flow
Polar-Cylindrical Computational grid

NOTES :

Idealised model of a cylindrical separator rotating at 50 rad/sec
A Water/Oil/Gas mixture enters the cylinder and exits through three outlets : One for each component

Configuration as follows :

    ////////////////////////////
    -------------------------  East wall
      --> In            --> Out

    - - - - - - - - - - - - -  Centre line

Pictures are as follows : 1. Computational Grid 2. Volume Fraction Concentrations : a. Water b. Oil and c. Gas Computational Grid

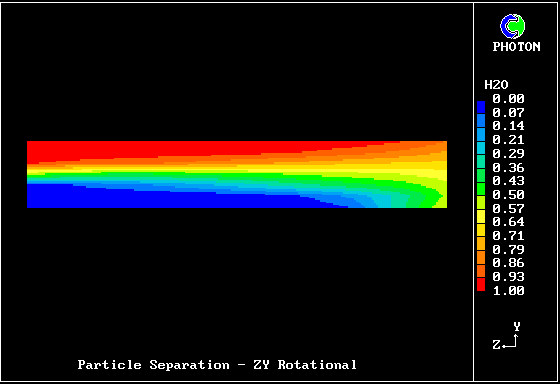

Water Volume Fraction - Concentration Contours

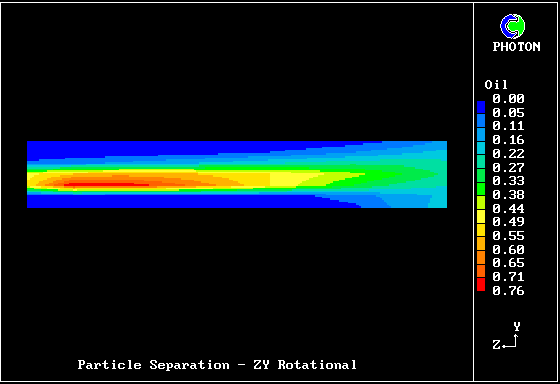

Oil Volume Fraction - Concentration Contours

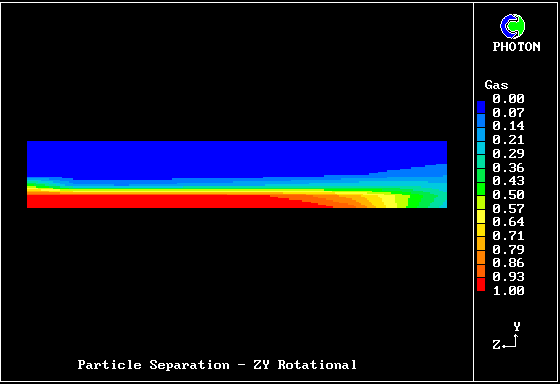

Gas Volume Fraction - Concentration Contours
