TITLE : PHOENICS IN THE PROCESS INDUSTRY : INFLATION OF A ROUND MEMBRANE

BY : CHAM Consultancy Team
FOR : Industrial Client - Liu Jun
DATE : 1985
PHOENICS Version : 1.4

DETAILS :

• Three-Dimensional Transient flow
• Moving grid is employed

NOTES :

• Idealised simulation of the transient displacement of a round membrane as it is inflated during the production formation process

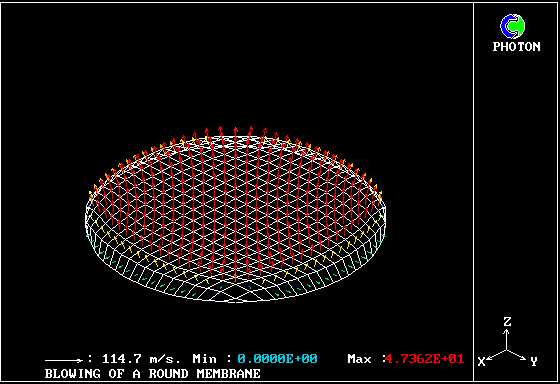

TIME STEP 1 : Displacement profile with Velocity vectors

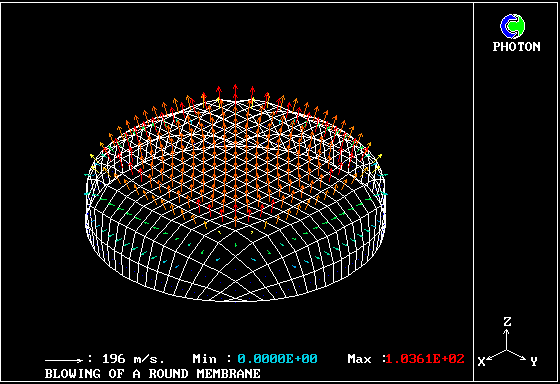

TIME STEP 2 : Displacement profile with Velocity vectors

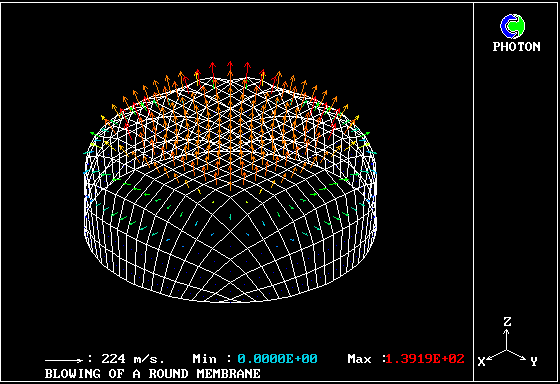

TIME STEP 3 : Displacement profile with Velocity vectors
