TITLE : GAS DISTRIBUTION IN A RING MAIN

BY : ISHII IRON WORKS CO. - V Palanisamy, Y Tada
DATE : 1995

DETAILS:

• Three-Dimensional flow
• Curvilinear(BFC) Computational grid

NOTES:

• The ring main distributes gas to reactor tubes through intermediate pig tail tubes.
• Unequal flow to the reactor tubes from the ring main is predicted.
• This is caused by sudden pressure variation at branching locations.
• A variety of inlet configurations were tested to compensate for the pressure variations.

The pictures are as follows:

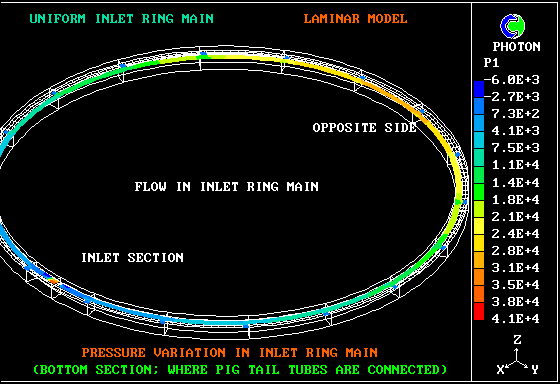

1. Pressure distribution in the ring main

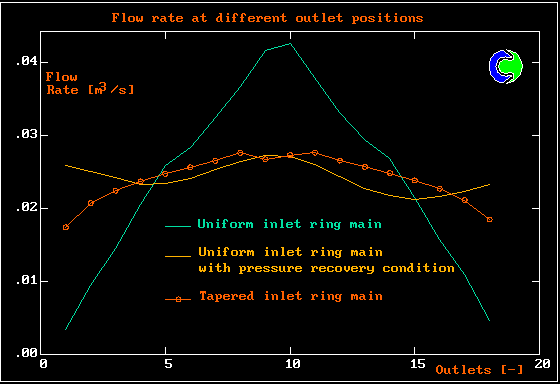

2. Flow rate at different outlet positions, for a variety of inlet configurations
