TITLE : STRESS-AND-STRAIN WITH FLOW ANALYSIS CENTRE-HEATED, EDGE-COOLED BLOCK

BY : D B Spalding DATE : 1992 PHOENICS VERSION : 1.6.6

DETAILS :

• Two-Dimensional elliptic representation
• Steady-state solution
• Cylindrical polar computational grid

NOTES :

• Metal block is heated at the centre and externally cooled
• The block centre is maintained at 1500 C
• Cool external gas flows through a porous media
• Thermal stresses cause metal expansion

Displacement vectors in the solid and velocity vectors in the fluid

Temperature distribution contours in the solid and fluid

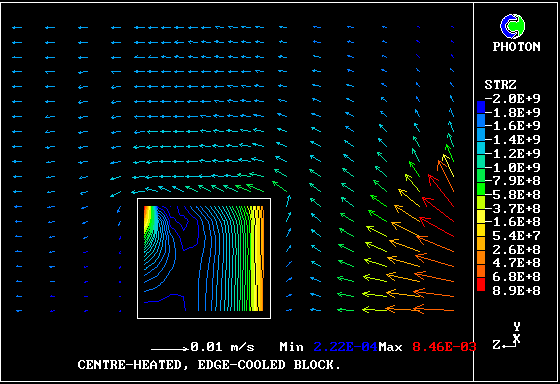

Velocity vectors with axial stress contours in the solid

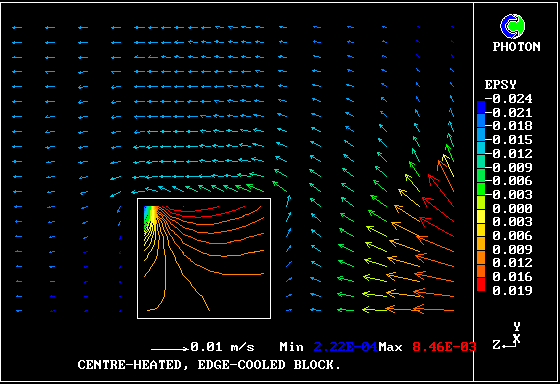

Velocity vectors with radial strain contours in the solid
