TITLE : HOTBOX EXAMPLE : ELECTRONIC SYSTEM RACK (Library Case : 108)

BY : CHAM Development Team - M T Madhav
FOR : HOTBOX Demonstration Case
DATE : December 1993
PHOENICS Version : HOTBOX 2.0

DETAILS :

• Three-Dimensional, Steady Flow
• Cartesian Computational Grid (NX=20 NY=48 NZ=18)

NOTES :

• Case Represents real-life Electronic System Rack
• Turbulence Model used is K-e
• The Model consists of the following components : a. 17 Plates c. 2 Aperatures b. 6 Solids d. 2 Fans
• The fans form part of the equipment within the rack

Pictures are as follows :

1. Geometry Configuration
2. Velocity Vectors
3. Temperature Distributions

Geometry Configuration

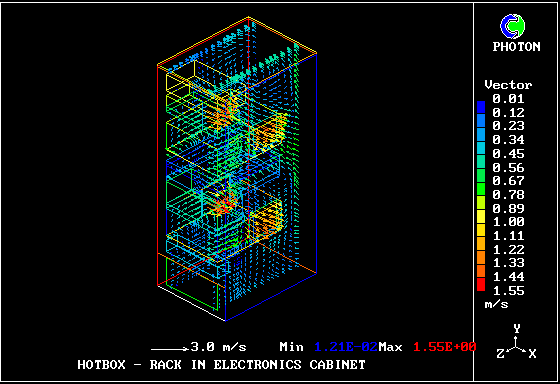

Velocity Vectors

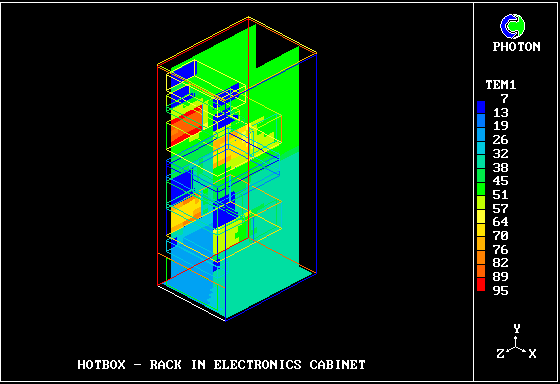

Temperature Distribution
