TITLE : SECTION THROUGH THE ROTOR OF AN ELECTRIC MOTOR

BY : D B SPALDING
FOR : Industrial Client
DATE : 1993
PHOENICS Version : 2.0

SIMULATION FEATURES :

• Three-Dimensional, Steady flow
• Polar Cartesian Computational grid

NOTES :

• PHOENICS has been used to predict the air movement and temperature distribution in an electric rotor as it rotates

Picture as follows :

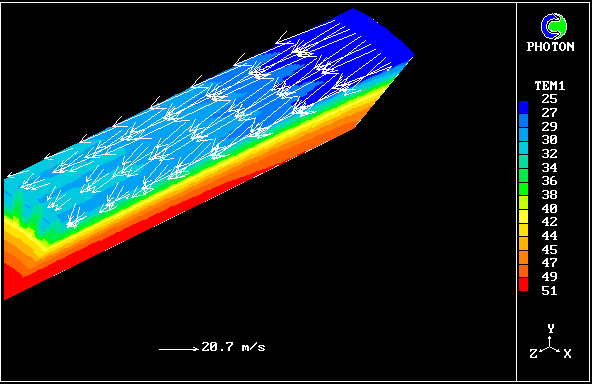

Temperature distribution in a rotor section

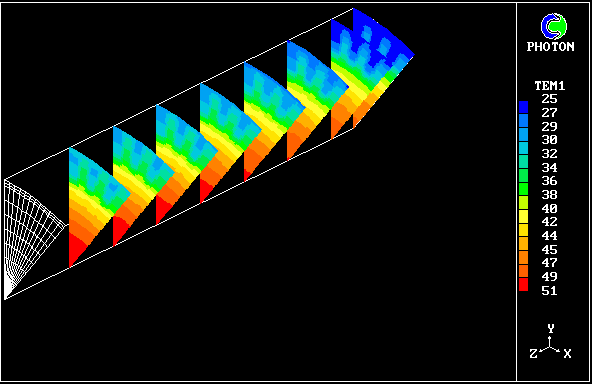

Temperature distribution along the rotor section

JJS
