TITLE : FLAIR EXAMPLE - HVAC IN AN AIRPORT TERMINAL BUILDING
BY : CHAM Development Team - D Radosavljevic
FOR : Demonstration Case
DATE : 1993 PHOENICS Version : FLAIR
DETAILS :
- Three-Dimensional, Steady flow
- Curvilinear (BFC) computational grid
NOTES :
- FLAIR predicts the Temperature and Air-movement in the concourse
- Warm-air enters the hall through ducts in the ceiling above the check-in
counters at 27 degrees
- Strategically located fans prohibit warm air from rising to the ceiling
Pictures are as follows:

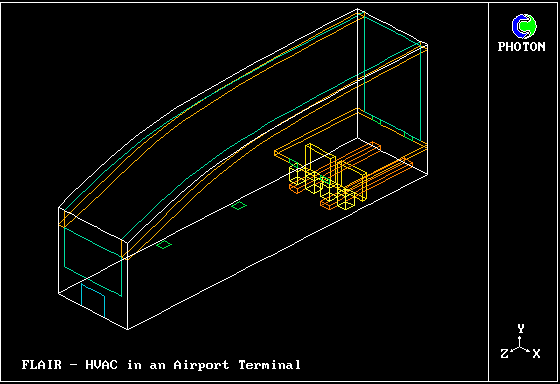

GEOMETRICAL CONFIGURATION

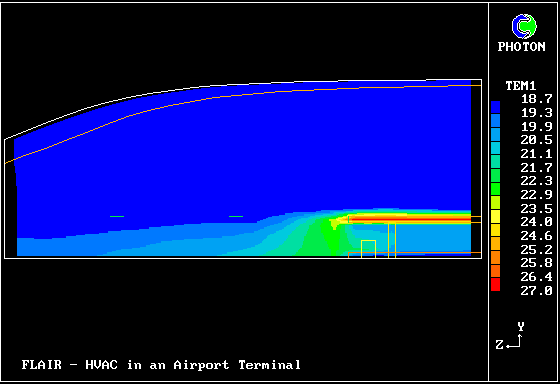

TEMPERATURE CONTOURS

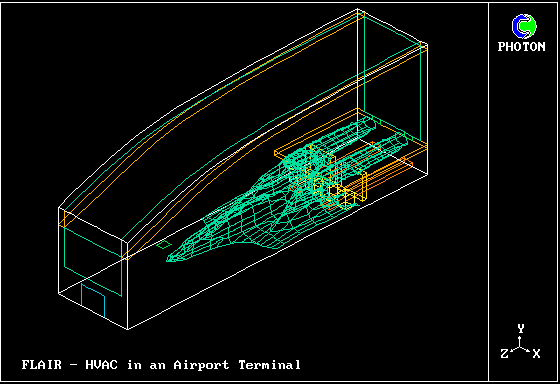

SURFACE TEMPERATURE CONTOURS AT 20.5 C
