TITLE : EXHAUST DISPERSION NEAR A TOWER BLOCK

DETAILS :

• This is an example of modelling urban pollution. The wind flows around a 31-storey tower block with a low rise block on the other side of the street.

• The source of pollution comes from the vehicular exhaust. The road passes between two residential blocks.

• Although FLAIR does not have capability of automatically setting wind profile, this example shows that the same effect can be achieved by defining several 'fans' with height-dependent inflow.

Pictures are as follows :

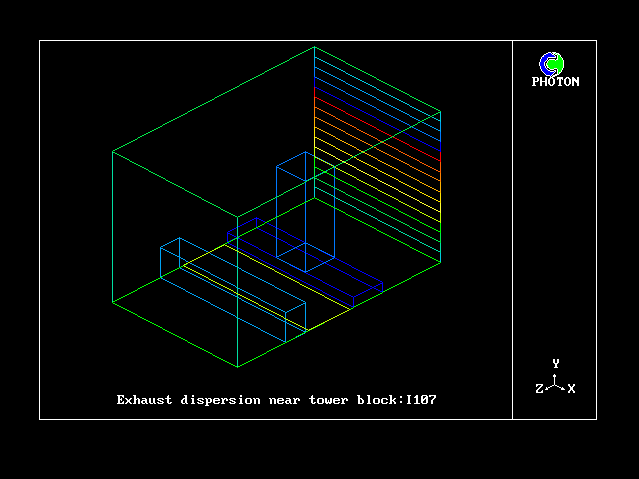

1. Geometry of the problem

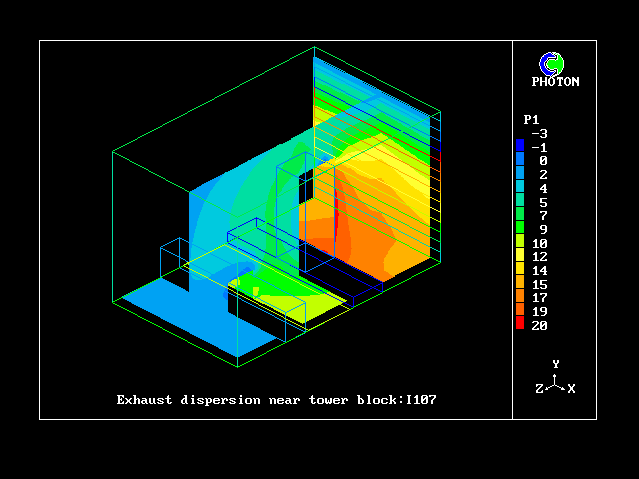

2. Pressure distribution.

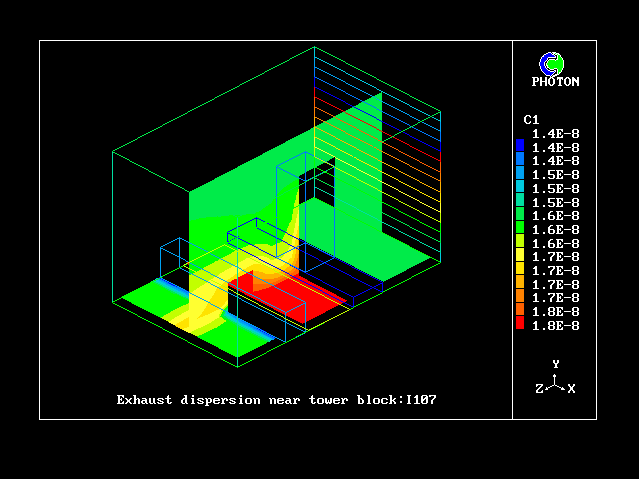

3. Pollutant distribution.

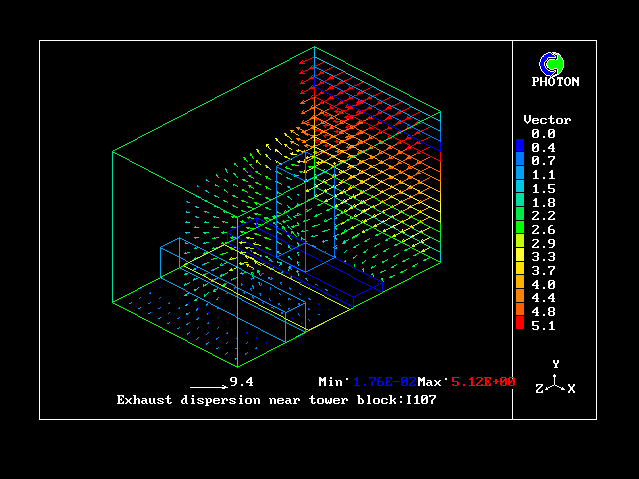

4. Velocity vectors
