TITLE : FLOW IN HOBSON'S CASCADE (LIBRARY CASE B526)

BY : CHAM Consultancy Team

This case represents the flow between two blades in a cascade. The geometry is that of Hobson's first impulse cascade (1974) for which a hodograph solution exists for inviscid compressible flow. It is treated as a 2-dimensional curved duct.
The grid is generated by using the MAGIC algorithm to smooth a preliminary grid generated by linear interpolation.

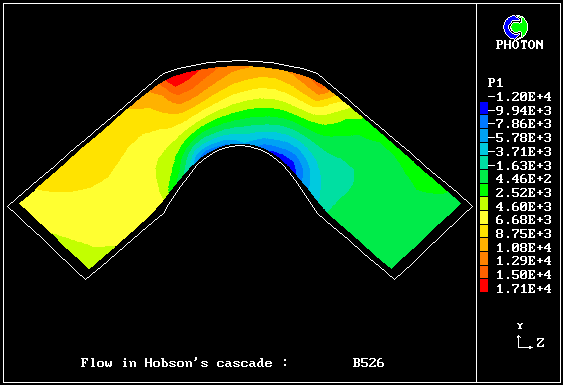

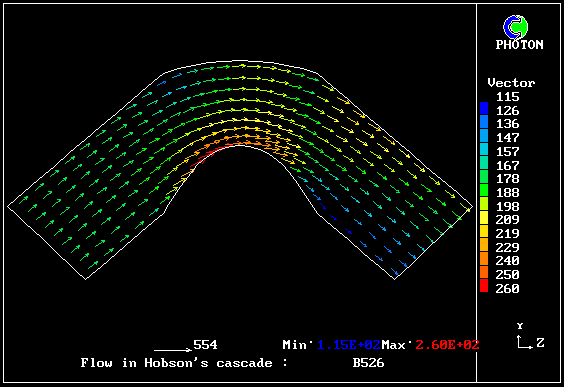

Pictures are as follows:
