TITLE : TURBULENT MIXING IN AN 'S' SHAPED DUCT

BY : S Zhubrin - CHAM-MEI

DETAILS :

• The PREMIX (PREdiction of MIXing) program is used to simulate turbulent mixing of different gases in a curvilinear duct.

• Three streams enter at the bottom of the duct, each with a distinct temperature and NO2 concentration.

• An orifice plate is located at the apex of the first bend to assist mixing.

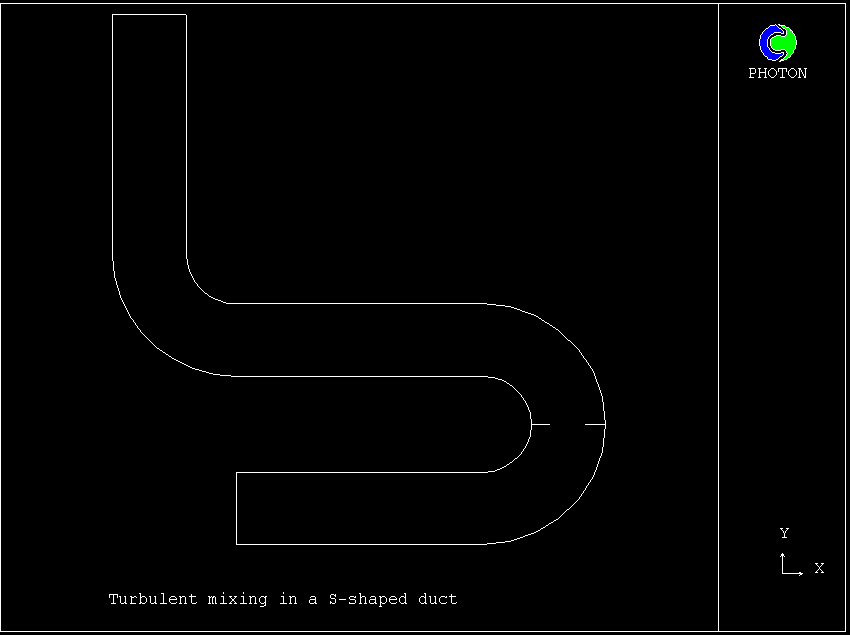

1. Geometry

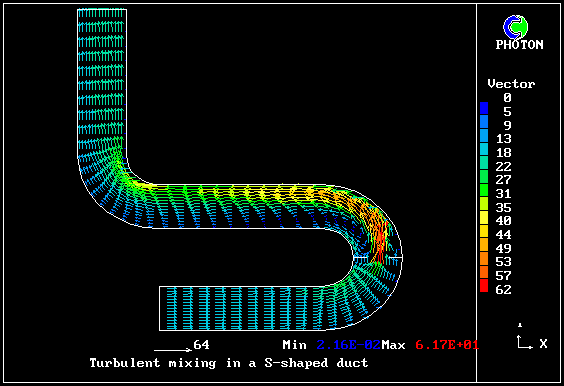

2. Velocity vectors

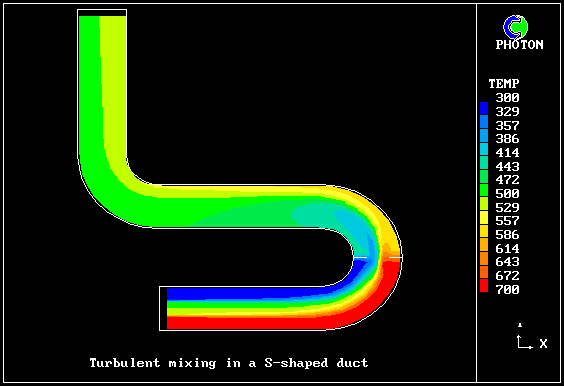

3. Temperature contours

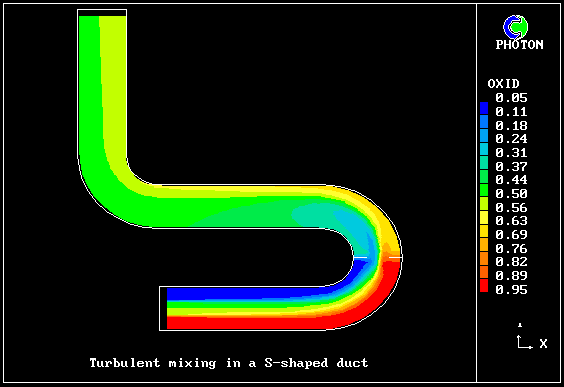

4. NO2 concentration contours

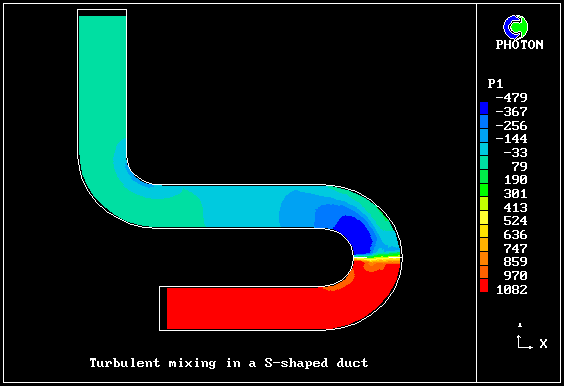

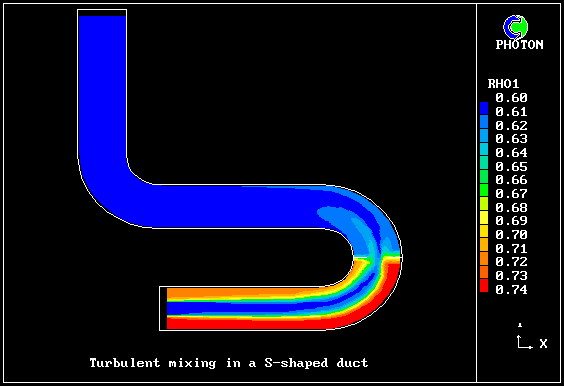

5. Flow contours

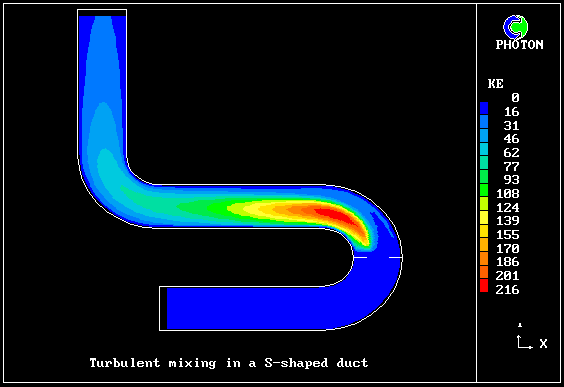

6. Turbulent energy contours
7. Turbulent viscosity contours
