TITLE : PHOENICS FEATURE - MULTI-BLOCKING

T-JUNCTION EXAMPLE

BY : CHAM Development Team - I POLIAKOV and S SEMIN FOR : Software Development DATE : 1994 PHOENICS Version : 2.0

DETAILS :

• Three-Dimensional steady flow

• Multi-Block Curvilinear(BFC) computational grid

• Simulation describes the flow in a T-Junction

• Two cases are considered, with the entry pipe at two different alignments.

Pictures as follows :

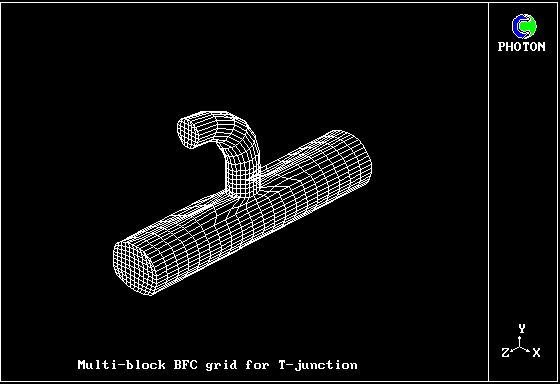

1. Computational Grid

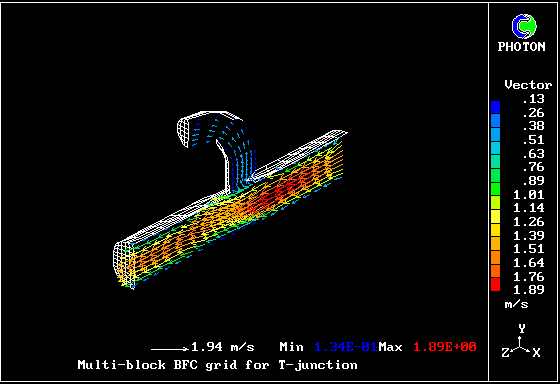

2. Velocity Vectors

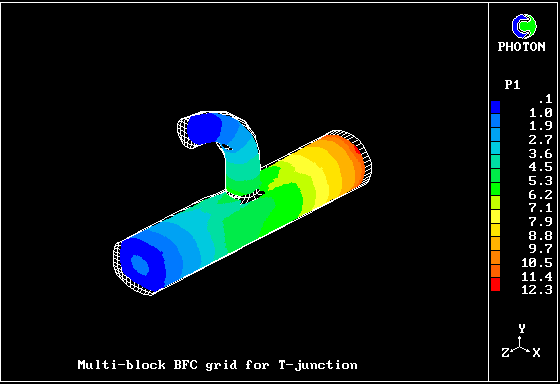

3. Pressure Distribution Contours

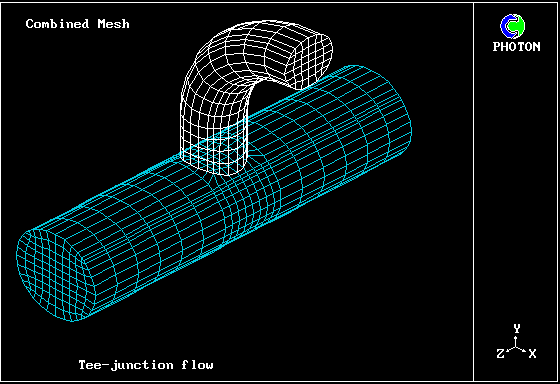

4. Computational Grid

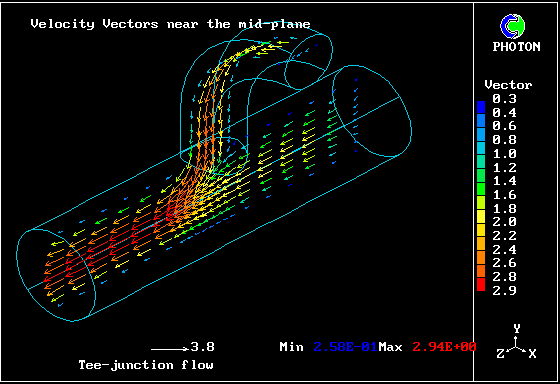

5. Velocity Vectors

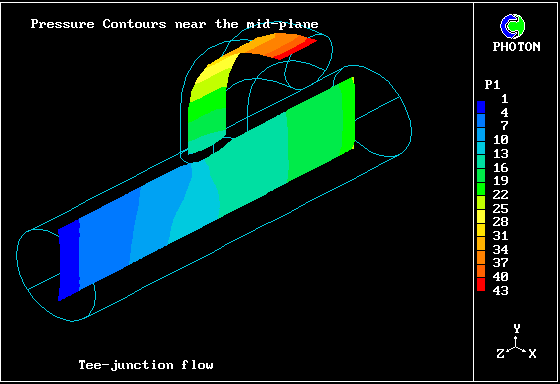

6. Pressure Distribution Contours

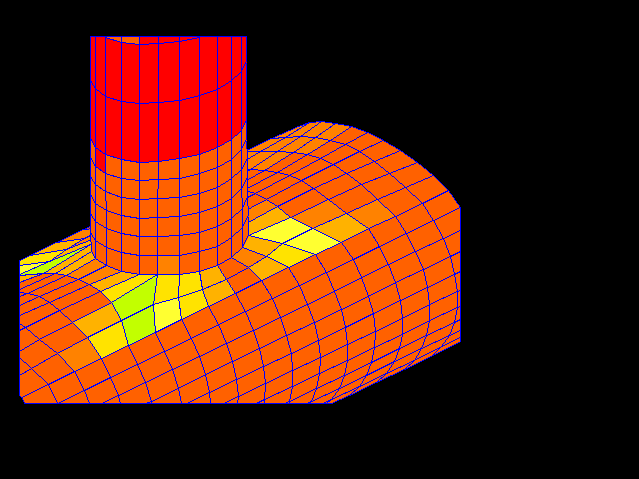

7. Close up of the junction

JJS
