TITLE : EXTRUSION OF A VISCOUS FLUID FROM A SQUEEZED TUBE

BY : D B SPALDING DATE : 1993 PHOENICS Version : 2.0

SIMULATION FEATURES :

• Three-Dimensional, Transient flow
• Moving Body-Fitted-Coordinate is used

NOTES :

• Transient case describing the extrusion of a viscous fluid from a squeezed tube

Pictures as follows : A series of PHOENICS PHOTON plots describing the fluid movement as the tube is being squeezed

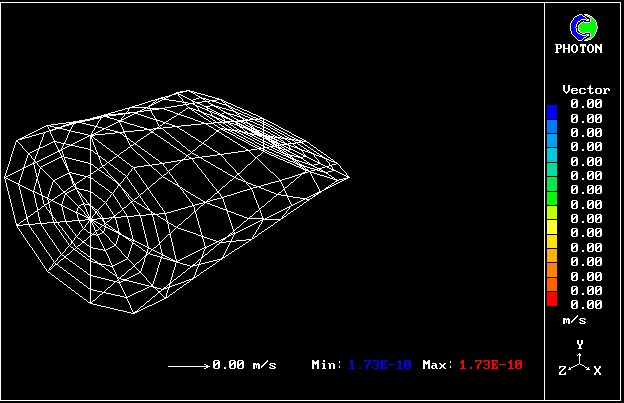

squeeze1

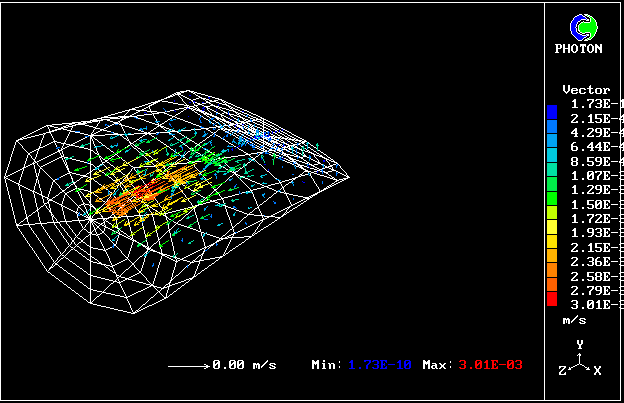

squeeze2

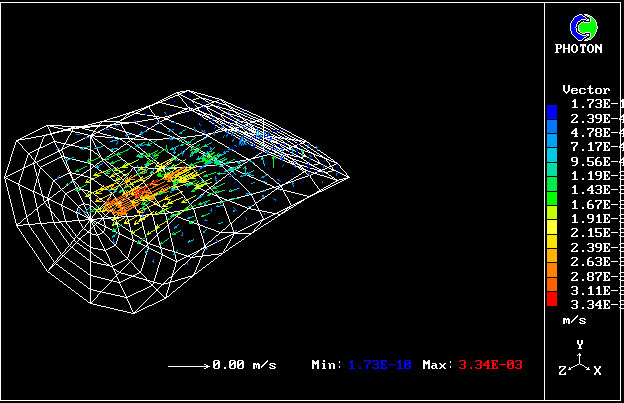

squeeze3

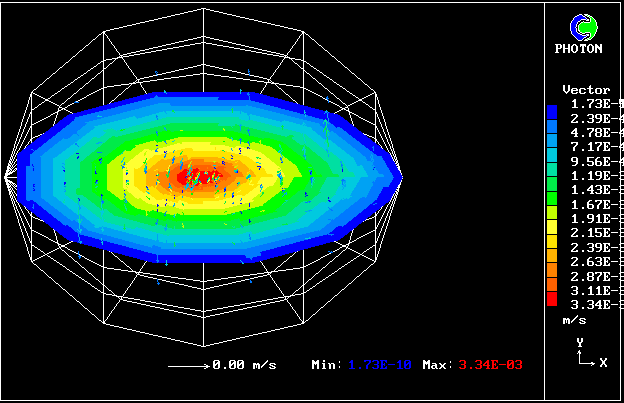

squeeze4

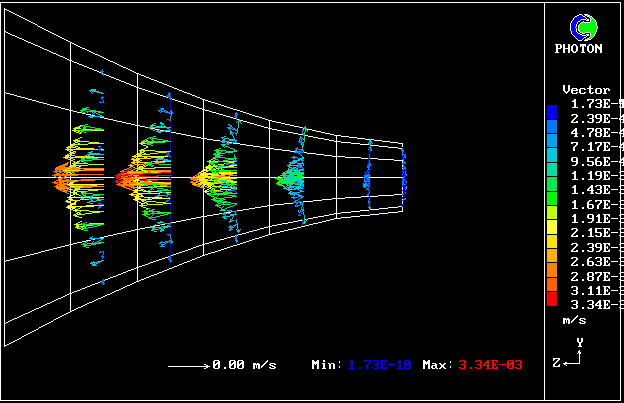

squeeze5

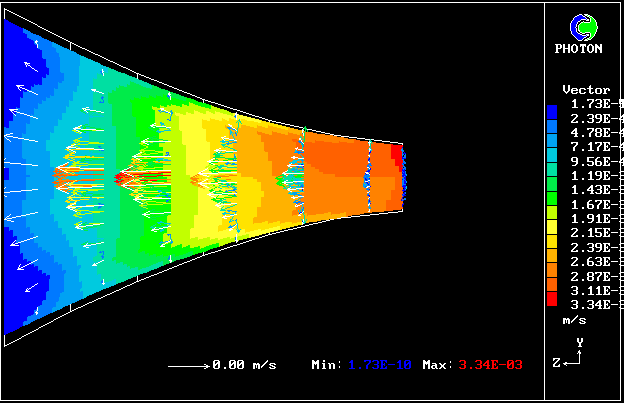

squeeze6
