TITLE : Cooling a photon / neutron detector

BY : IKOSS-CSS GmbH, Germany - M. Megahed
FOR : Benchmark
DATE : 1994
PHOENICS Version : 2.0

DETAILS :

• Three-dimensional steady turbulent flow.
• Polar computational grid.

NOTES :

• The photon detectors are heated during their operation. The max. temp allowed to avoid noise is 290 K.
• The cooling efficiency in investigated.

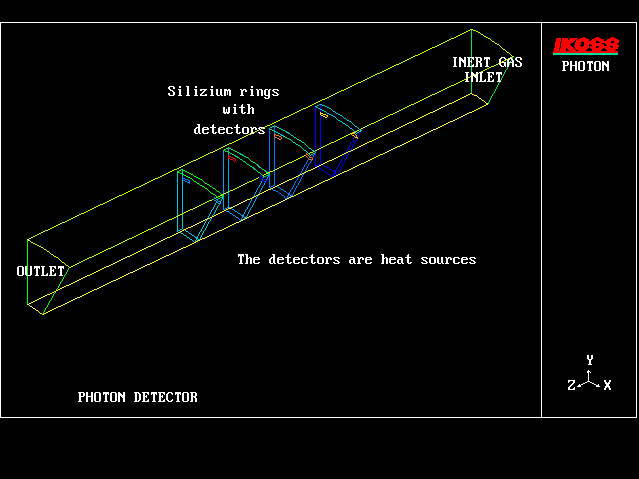

1. Detector geometry.

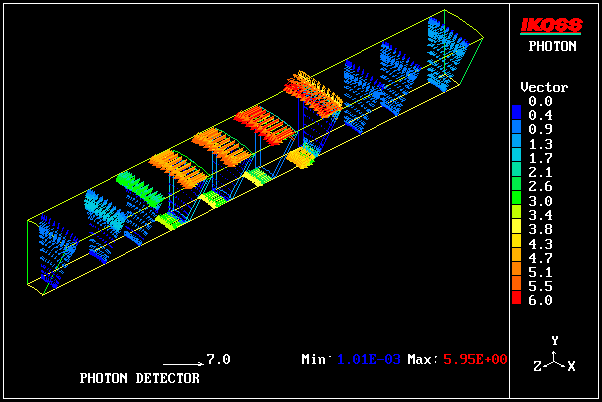

2. Vector fields in the detector.

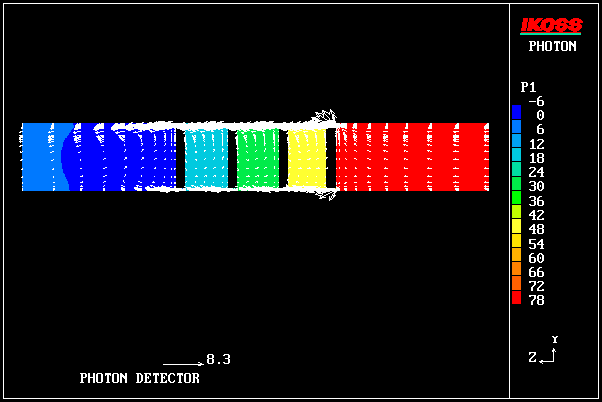

3. Pressure drop accross the rings carrying the detector chips.

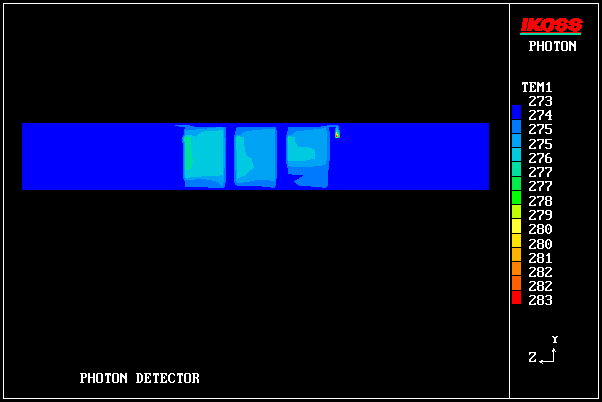

4. Temperatue distribution in the detector.
