TITLE : CVD REACTOR RADIATION EXAMPLE (LIBRARY CASE R101)

BY : CHAM Consultancy Team

DETAILS :

• The flow of air over a solid block is computed, and the velocity fields are saved. The enthalpy field that results from the uniform heating of the solid block cooled by the velocity field determined in the first run is calculated.

• The flow is two-dimensional and the k-e turbulence model is used.

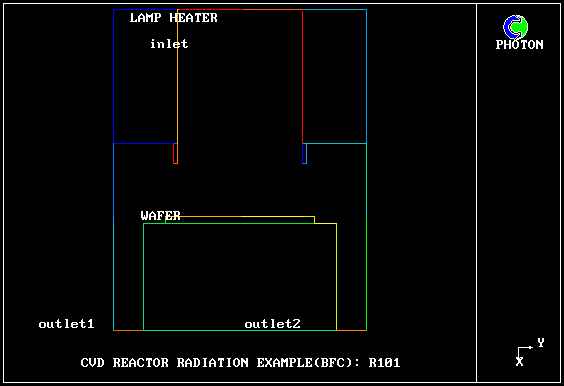

Geometry of the problem
Pressure distribution.

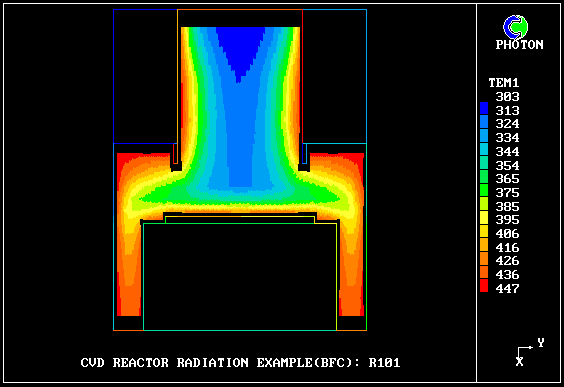

Temperature contours
