TITLE : PHOENICS FEATURE - MULTI-BLOCKING

CONTINUOUS CASTING MODEL

BY : CHAM Development Team - C J WERE
FOR : Software Development
DATE : 1994
PHOENICS Version : 2.0

DETAILS :

• Two-Dimensional steady flow
• Multi-Block Curvilinear(BFC) computational grid
• Simulation describes a simple continuous casting arrangement

Pictures as follows :

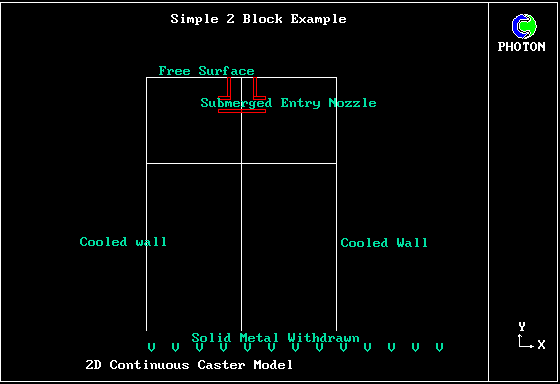

Geometrical Configuration

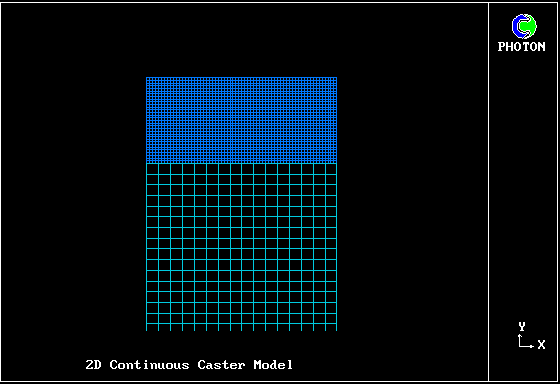

Computational Grid

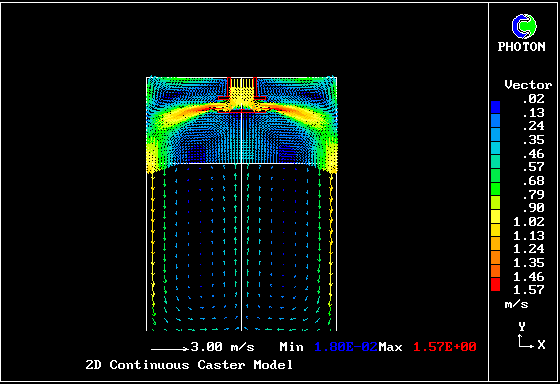

Velocity Vectors

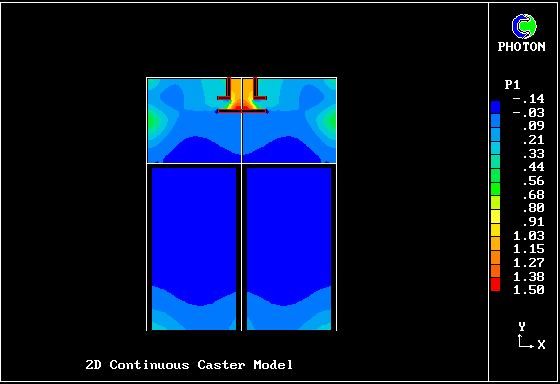

Pressure Distribution Contours

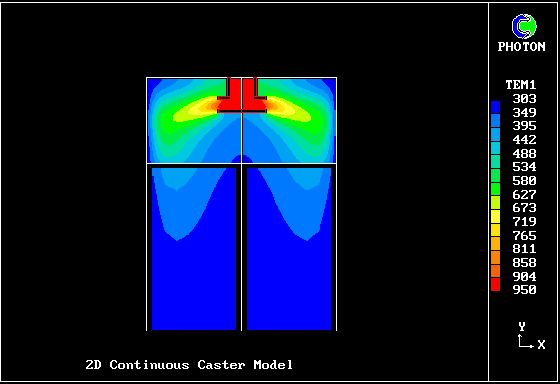

Temperature Distribution Contours

JJS
