TITLE : A COAL-COMBUSTION FURNACE MODEL (LIBRARY CASE C111)

BY : CHAM Consultancy Team

DETAILS :

• A coal fired furnace is modelled in three dimensions.

• The solid phase is considered as composing only of carbon and the following reactions are considered:

                C (s) + 0.5 O2  -> CO      (exothermic)
                CO    + 0.5 O2  -> CO2     (exothermic)
                C (s) + CO2     -> 2CO     (endothermic)
                C (s) + H2O     -> CO + H2 (endothermic)
                H2    + 0.5 O2  -> H2O     (exothermic)

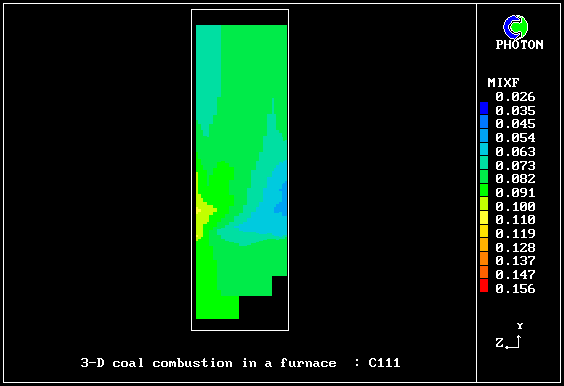

Mixture fraction contours

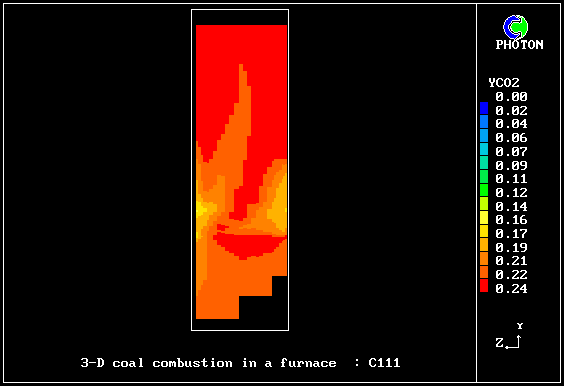

CO2 contours

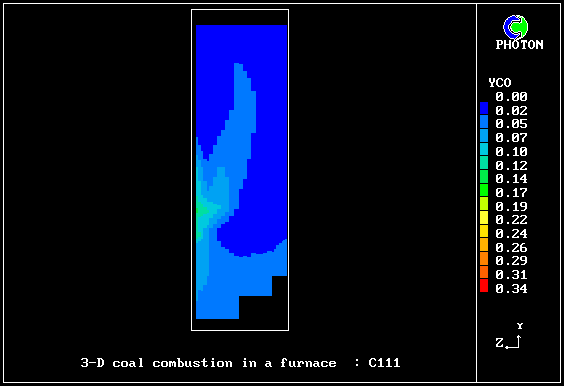

CO contours

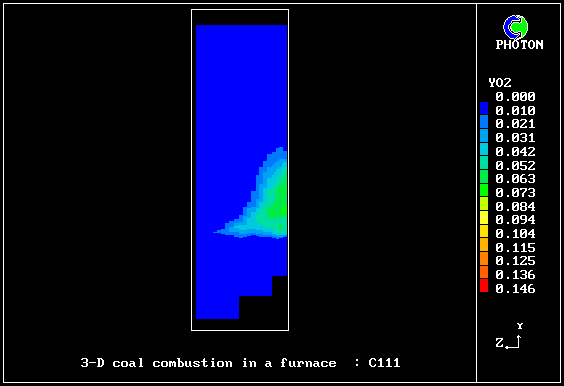

O2 contours
Gas phase temperature contours
Solid phase temperature contours

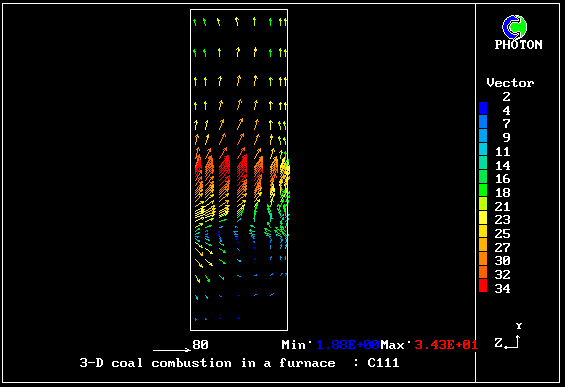

Velocity vectors
