TITLE : PHOENICS IN THE POWER INDUSTRY - FUEL COMBUSTION IN A FURNACE

BY : CHAM Consultancy Team - M R Malin; Energy Systems Associates (ESA) - T C Kosvic
FOR : ESA for PSI Energy [USA]
DATE : 1993
PHOENICS Version : 1.6.6

DETAILS :

• Three-Dimensional, Steady flow
• Cartesian computational grid

NOTES :

• Simulation describes combustion in a power plant steam-generating boiler
• Model designed to examine the formation of NOx within boiler furnace
• Six burners inject a mixture of pulverised coal and preheated air into the combustion chamber

  Pictures describe the following: 1. Three-Dimensional Geometrical configuration with velocity vectors 2. NOx concentration contours with velocity vectors 3. Temperature distribution contours

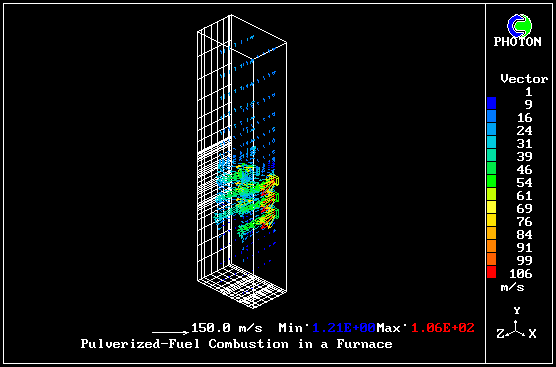

  Geometrical configuration with Velocity vectors

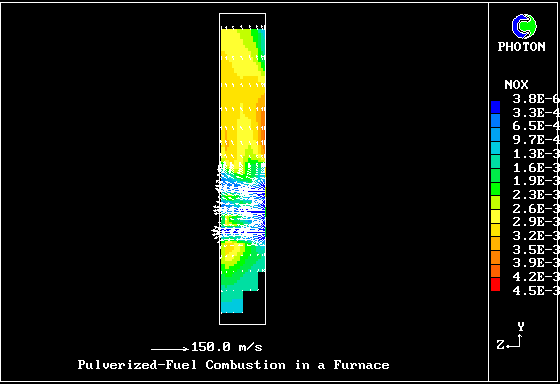

  NOx concentration contours with velocity vectors

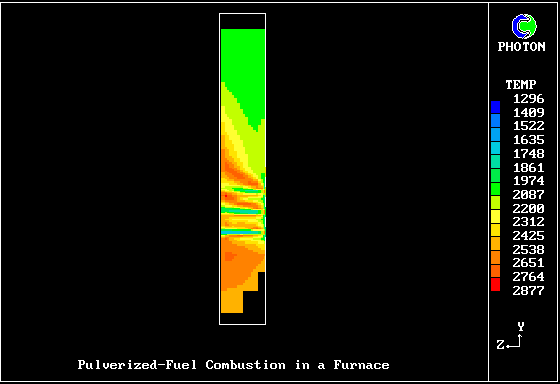

  Temperature Distribution Contours
