TITLE : POWER STATION FURNACE - COLD FLOW

BY : CHAM Development Team - J C Ludwig
FOR : Demonstration Case
DATE : 1992
PHOENICS Version : 1.6

DETAILS :

• Three-Dimensional steady flow
• Curvilinear (BFC) computational grid

NOTES :

• Isothermal (Cold flow) simulation for a typical power station furnace configuration

Pictures are as follows :

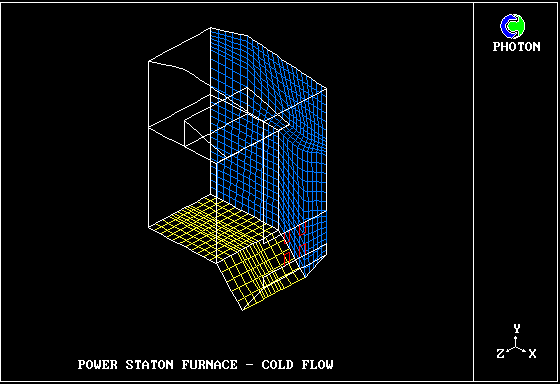

Geometrical Configuration

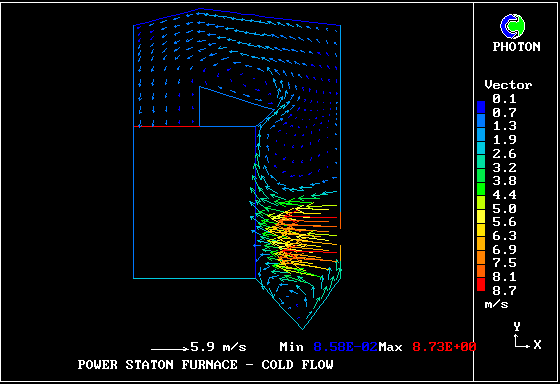

Velocity Vectors

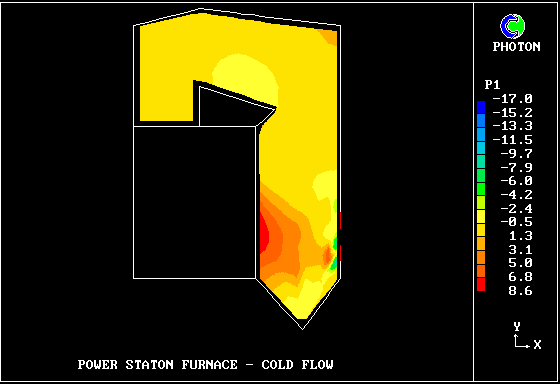

Pressure Distribution Contours
