BY: D R Glynn, FLOWSOLVE, London. Tel: +44 181 944 0940

FOR: Morris Ashby Castings Ltd

In the die-casting process, molten aluminium is forced from a reservoir into a delivery channel known as a "runner", and thence through "gates" into the individual castings.
The design of the runner should ideally be such that metal arrives at each gate simultaneously.
Simulation of flow in the runner can help optimise the design.
Model features - 3D transient, free-surface (SEM), BFC grid.

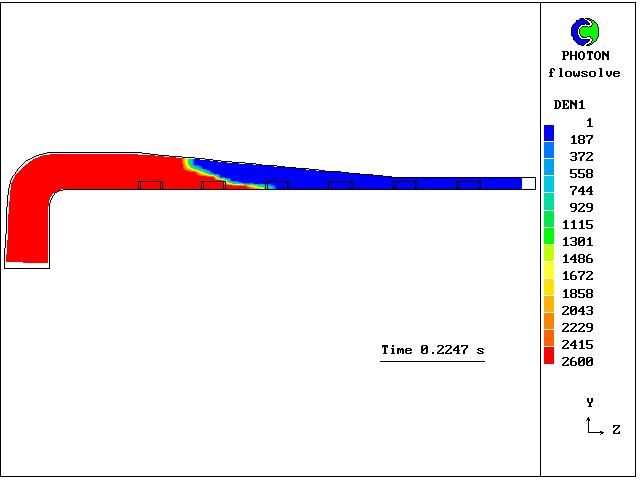

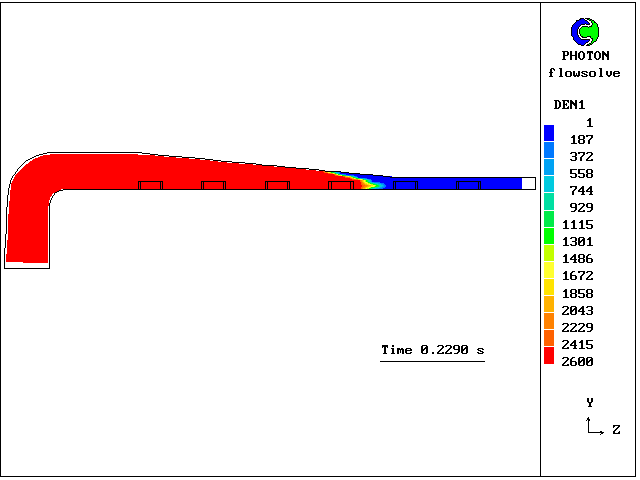

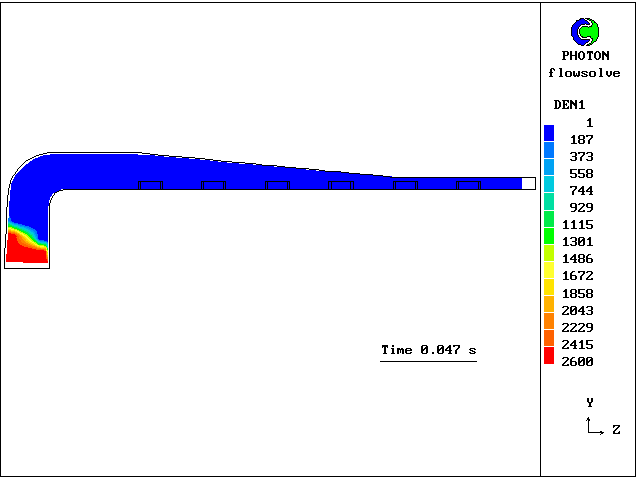

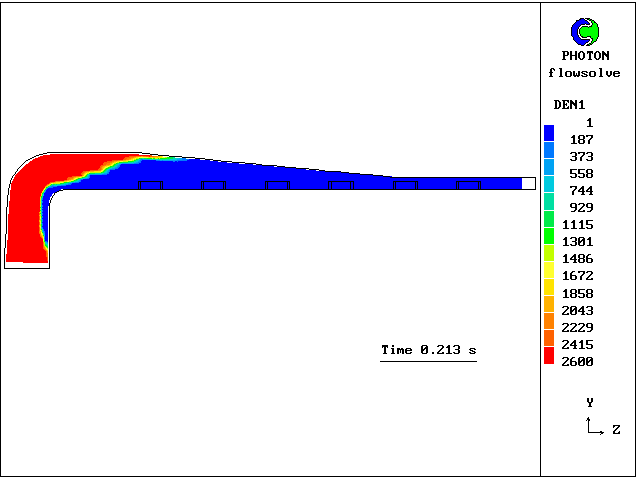

The plots below show the location of the metal front at four instants through the transient.
Metal is shown red, air blue.
Metal is injected at bottom left.
Outflows at the gates are in the x-direction, i.e. out of the plane of the plots.
