TITLE: Geometry Created for VR - Aerofoils

BY: F. de Trogoff - CHAM UK

DATE: 1997

Details:

• The geometry of a three-element aerofoil was created by discretizing its shape into coordinates (x, y, z)

• The coordinates were rescaled and repositioned so that:

                    | x |                      | x |
                min | y |  = 0             max | y | = 1
                    | z |                      | z |


• The scaled coordinates and information detailing each facet of the geometry were placed in a data file.

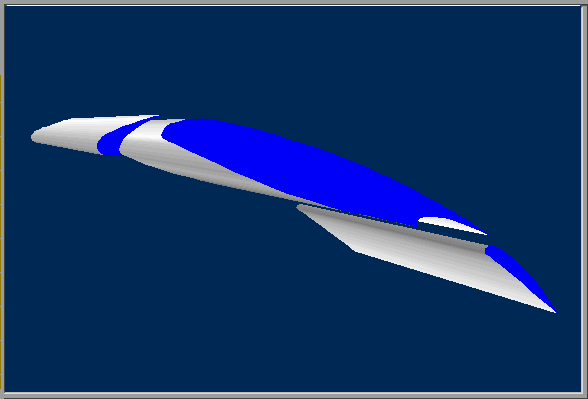

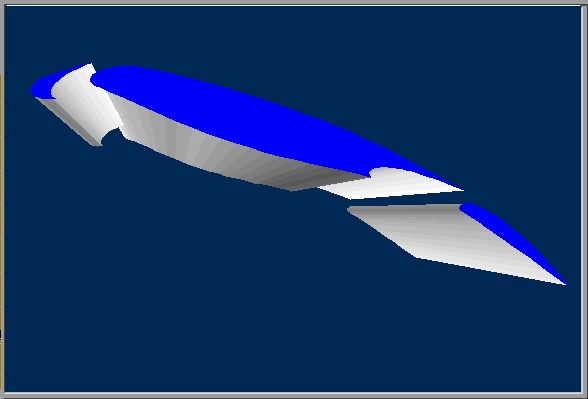

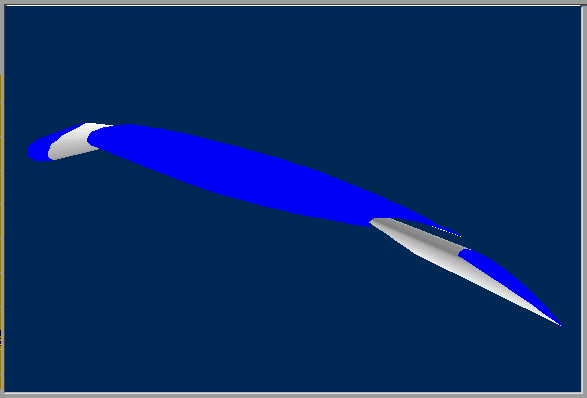

The following pictures show the created geometry from several angles.

aero_1

aero_2

aero_3
