BY : S Zhubrin - CHAM-MEI

This case is a part of a project to predict turbulent and two-phase flows at the town scale.
It is concerned with the rainfall in the street canyon between one elevated building and its low-rise neighbouring block.
The pollution is a simulated by inter-phase transport from gaseous to liquid phase, governed by specification of interphase transfer coefficients and
PLANT instructions provided in Group 10 make the special GROUND codings.

PLANT is a PHOENICS add-on which allows users to change the coding within certain GROUND groups and sections using PIL instructions in the Q1 file.
PLANT can include GROUND coding for non-linear property correlations, interphase transport features, initial fields, non-linear source laws and output control calculations.
PLANT is intended for use by those with a need to include GROUND routines but who either lack the necessary FORTRAN knowledge or who wish to same time by placing the necessary commands in the Q1 file
PLANT adds the required coding into GROUND and recompiles the EARTH executable before starting the run.
PLANT is included in PHOENICS 1.4 Shareware.

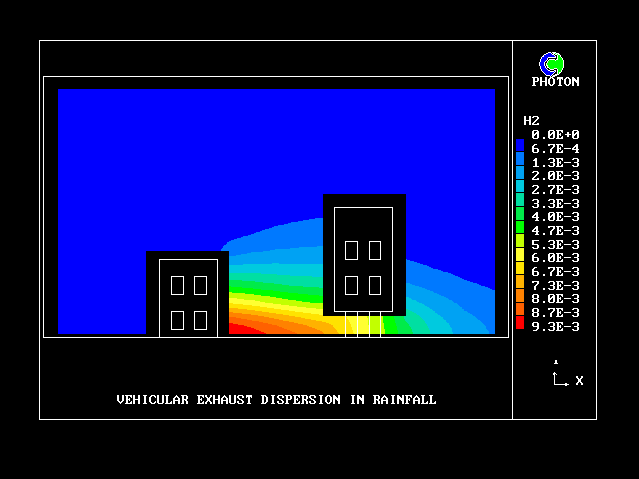

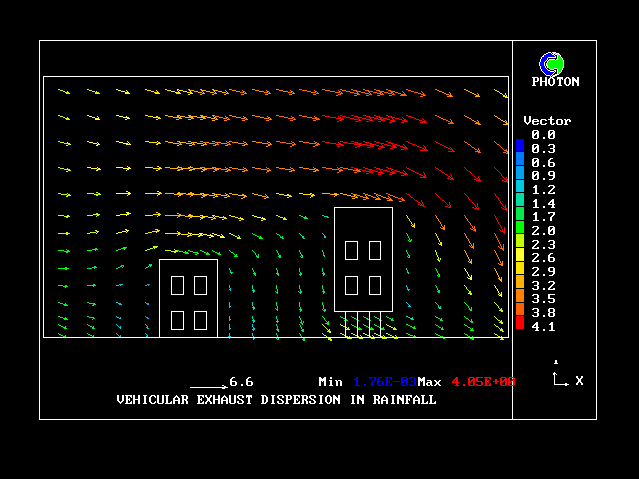

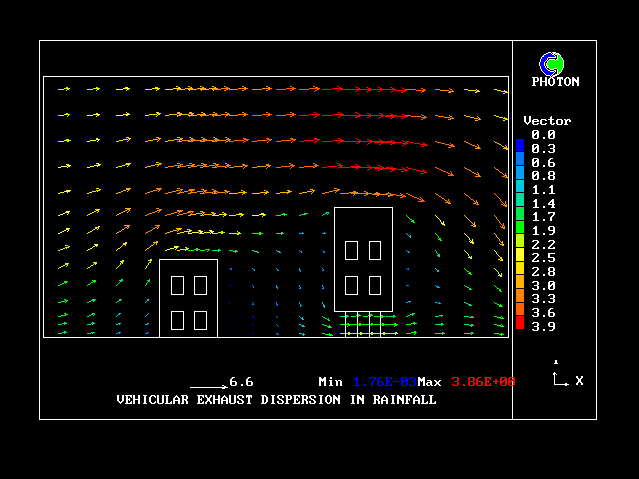

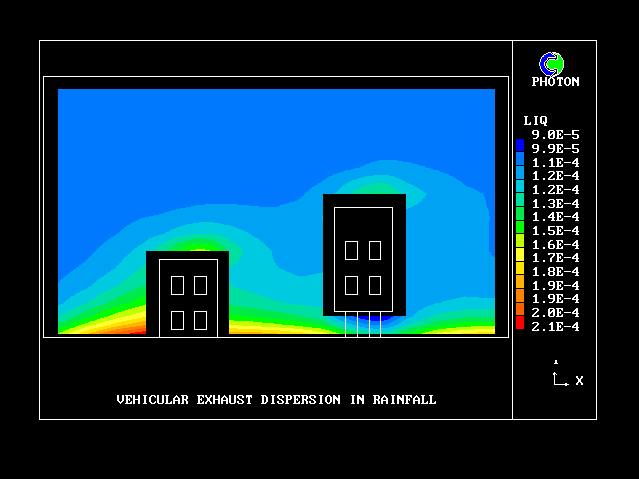

Pictures are as follows :
