BY : S Zhubrin - CHAM-MEI

This case is a part of a project to predict turbulent and two-phase flows at the town scale.
It is concerned with the snowfall in the street canyon between one elevated building and its low-rise neighbouring block.
PLANT is used to introduce the influence of gas and snow concentration near the road surface on the source of vehicular exhaust pollution.

PLANT is a PHOENICS add-on which allows users to change the coding within certain GROUND groups and sections using PIL instructions in the Q1 file.
PLANT can include GROUND coding for non-linear property correlations, interphase transport features, initial fields, non-linear source laws and output control calculations.
PLANT is intended for use by those with a need to include GROUND routines but who either lack the necessary FORTRAN knowledge or who wish to same time by placing the necessary commands in the Q1 file
PLANT adds the required coding into GROUND and recompiles the EARTH executable before starting the run.
PLANT is included in PHOENICS 1.4 Shareware.

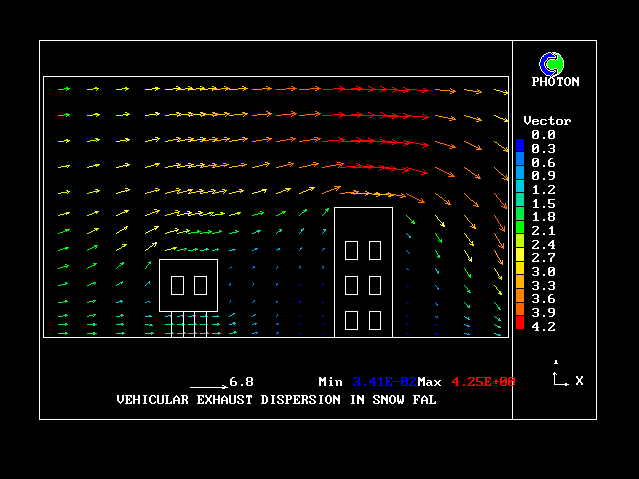

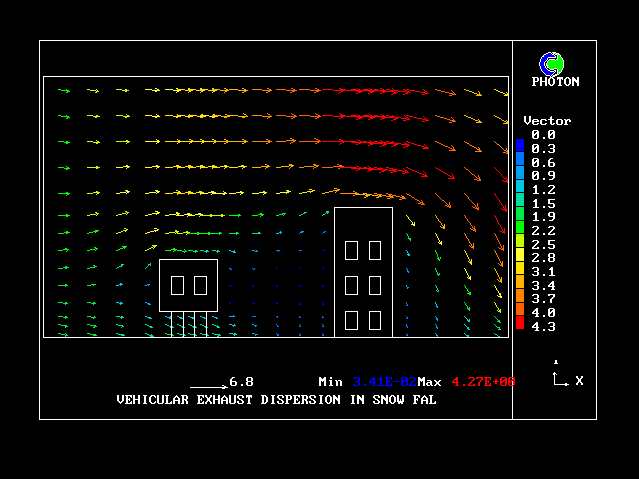

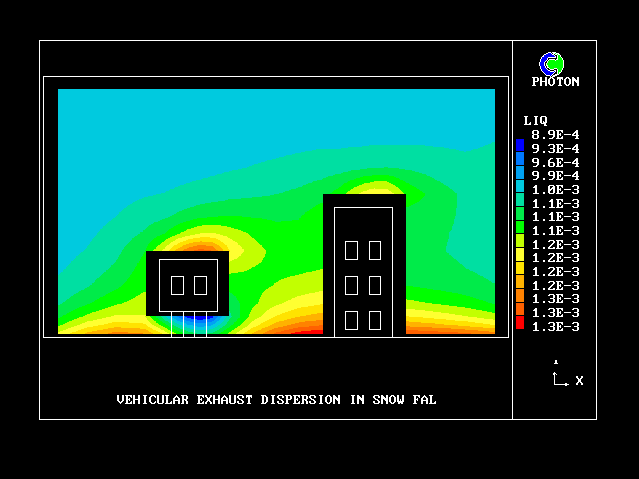

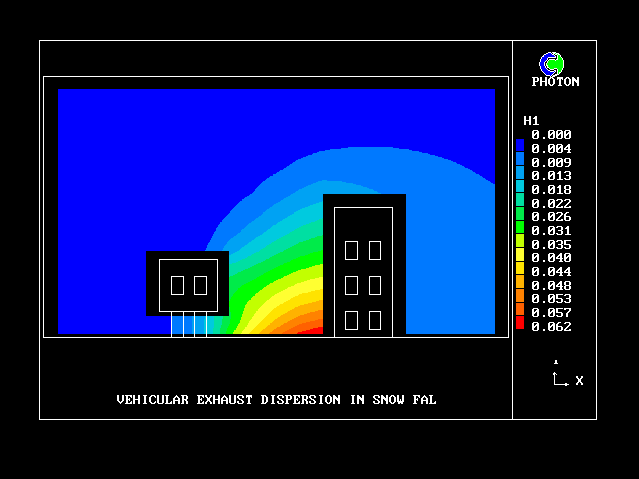

Pictures are as follows :
