TITLE : SOIL DRIFT POLLUTION IN A RIVER

BY : S Zhubrin - CHAM-MEI

DATE: SEPTEMBER 1995

PHOENICS VERSION: 1.4 Shareware

DETAILS :

• This case concerns planar, two-dimensional, two-phase soil-water flow with sedimentation through a 180 degree turnaround duct.

• The phases have different temperatures and PLANT is used to introduce the interphase heat transfer rate.

Further details of PLANT:

• PLANT is a PHOENICS add-on which allows users to change the coding within certain GROUND groups and sections using PIL instructions in the Q1 file.

• PLANT can include GROUND coding for non-linear property correlations, interphase transport features, initial fields, non-linear source laws and output control calculations.

• PLANT is intended for use by those with a need to include GROUND routines but who either lack the necessary FORTRAN knowledge or who wish to same time by placing the necessary commands in the Q1 file

• PLANT adds the required coding into GROUND and recompiles the EARTH executable before starting the run.

• PLANT is included in PHOENICS 1.4 Shareware.

Pictures are as follows :

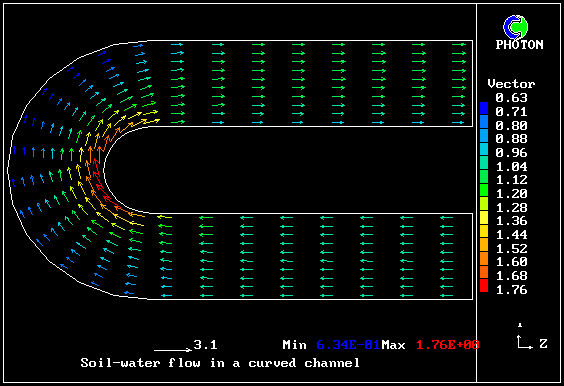

1. Velocity vectors for the water

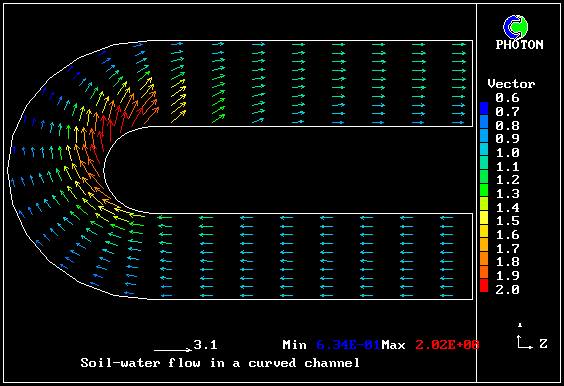

2. Velocity vectors for the soil particles

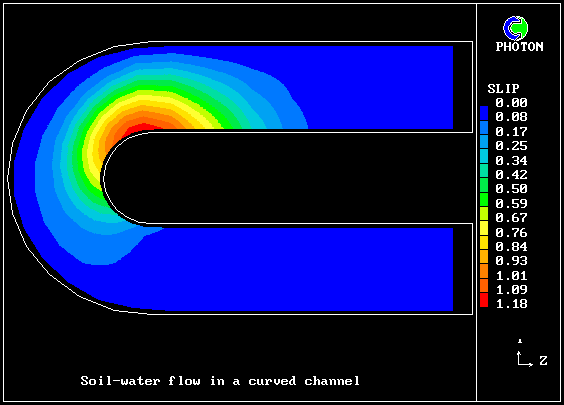

3. Slip velocity

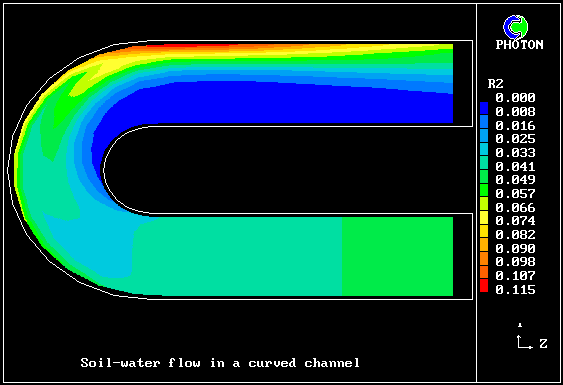

4. Volume fraction of soil particles

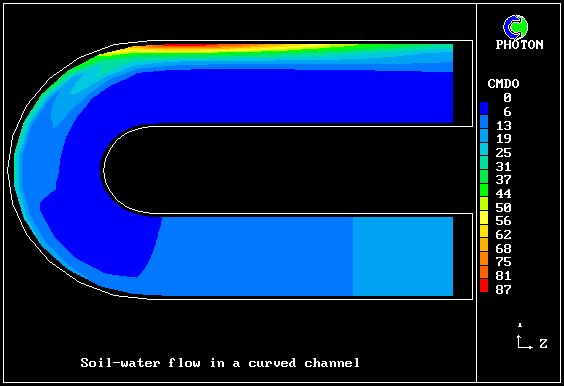

5. Sedimentation mass transfer rate

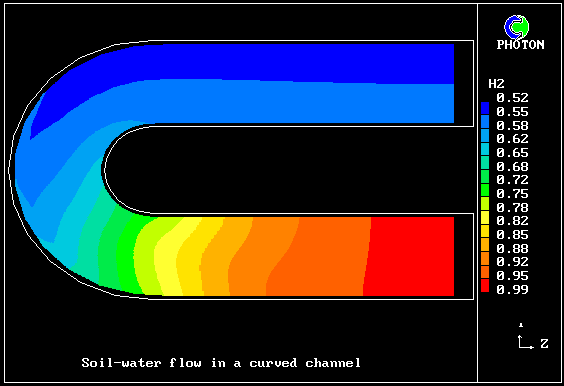

6. Water temperature

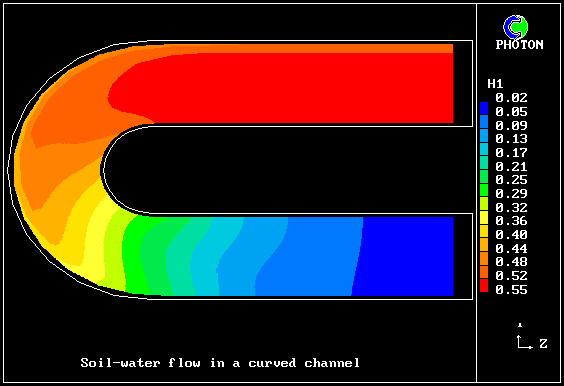

7. Soil temperature
